Specifications : |
||
|
Weighted S / N Ratio |
: |
MC better than 60 dB, depending on gain |
|
Accuracy of the RIAA |
: |
better 1 dB from 20Hz - 20KHz |
|
Distortion |
: |
lower than 0.01% 0.5mV to 3V AC output (100 Ohm load) at 1 kHz, from 20Hz to 20KHz lower than 0.05% |
|
Input resistance |
: |
MC switchable between
22, 47, 100, 221, 475
Ohms, |
|
Gain |
: |
adjustable with 6 fold Dip switch between +30 dB to +70 dB |
|
Dimensions (W x D x H) |
: |
10.5" x 14" x 4" |
|
Weight |
: |
11 lbs |
|
|
||
|
Standby Switch |
: |
Optional blue illuminated power switch in the front panel. |
|
WBT connectors |
: |
Optional WBT Copper or Silver connectors can be requested |
|

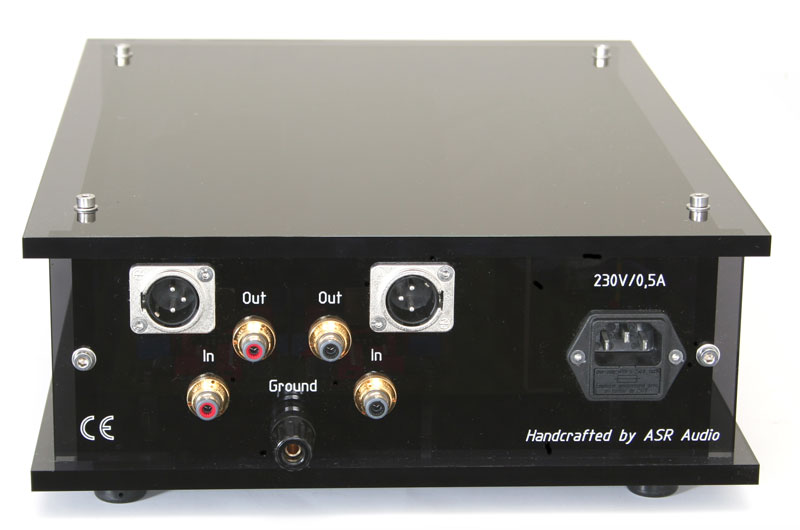

Balanced XLR output |
: |
Extra balanced output with 2x XLR connectors |
|

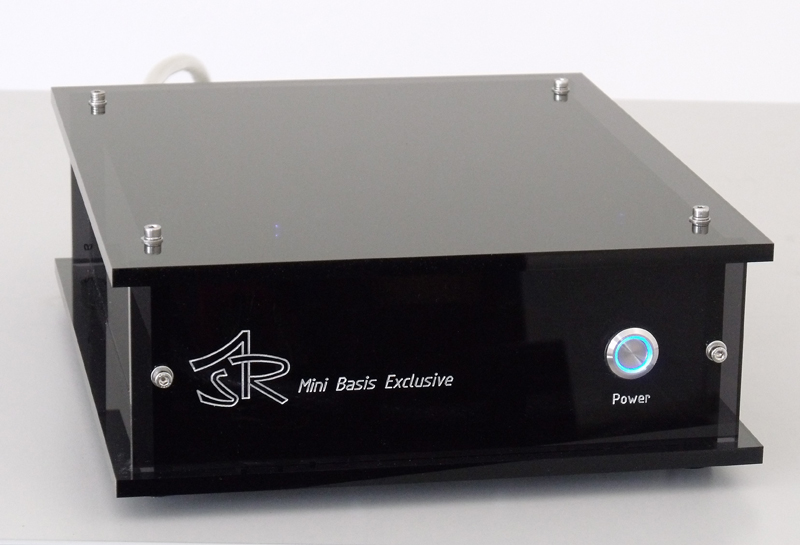

Mini Basis Exclusive |
: |
Same as Mini Basis MKIII but, also includes IC: AD843SQ (same as the one used in Basis Exclusive), brass bar damper over ICs & Magic cord (1.5M) |
