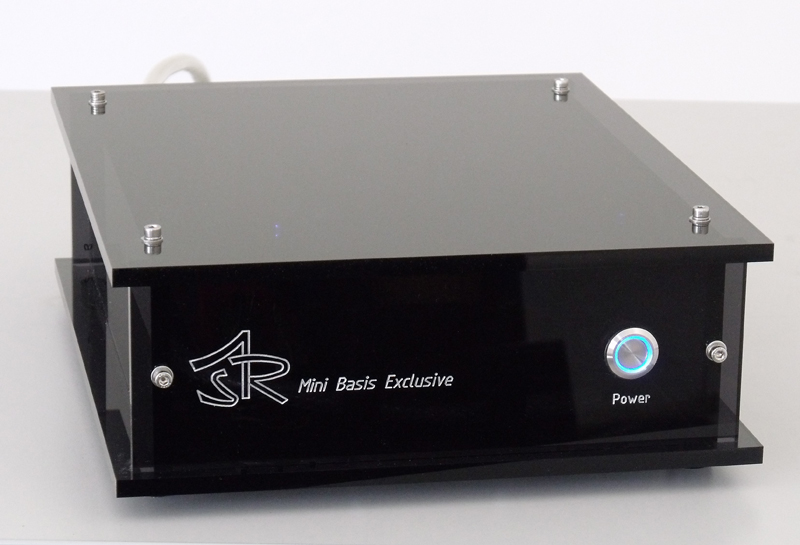

ASR Mini Basis Exclusive

ASR Mini Basis Exclusive
65,000 บาท (ช่อง XLR เป็น option เพิ่มอีก 10,000 บาท)

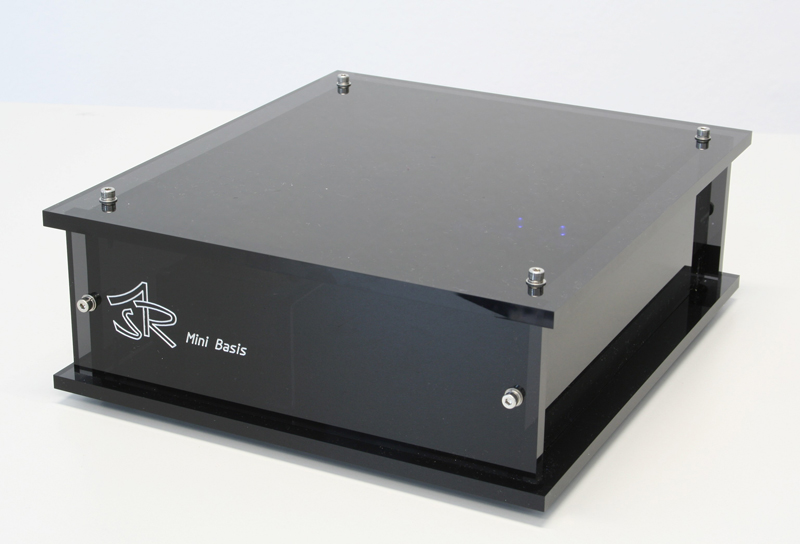

ASR Mini Basis

ASR Mini Basis
45,000 บาท

Description:
The new ASR Mini-Basis MKIII Phono-Preamplifier is built in a case made from high-quality, lightly transparent acrylic glass, like all ASR amplifiers. The inscription is engraved and colored by hand. The Mini-Basis has adjustable input impedance for both MM and MC (22, 47, 100, 221 and 475 ohms) and adjustable gain (+10dB, +16dB, +30dB, +35dB, +40dB) for use with all standard MM (Moving Magnet) and MC (Moving Coil) phono cartridges.

Specifications :

Weighted S / N Ratio : MC better than 60 dB, depending on gain

Accuracy of the RIAA : better 1 dB from 20Hz - 20KHz

Distortion : lower than 0.01% 0.5mV to 3V AC output (100 Ohm load) at 1 kHz, from 20Hz to 20KHz lower than 0.05%

Input resistance : MC switchable between 22, 47, 100, 221, 475 Ohms, MM switchable between 1, 2.2, 9, 15, 47 k Ohms

Gain : adjustable with 6 fold Dip switch between +30 dB to +70 dB

Dimensions (W x D x H) : 10.5" x 14" x 4"

Weight : 11 lbs

Options :
Standby Switch : Optional blue illuminated power switch in the front panel.

WBT connectors : Optional WBT Copper or Silver connectors can be requested

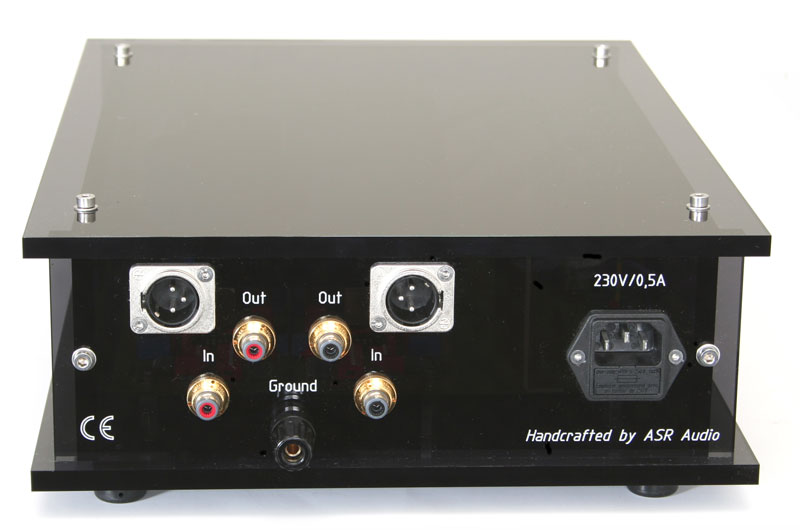

Balanced XLR output : Extra balanced output with 2x XLR connectors

Mini Basis Exclusive : Same as Mini Basis MKIII but, also includes IC: AD843SQ (same as the one used in Basis Exclusive), brass bar damper over ICs & Magic cord (1.5M)
