24v High performance turntable motor upgrade kit

24v High performance turntable motor upgrade kit
7,500.00
The kit includes the low noise, low vibration 24v motor designed and developed for our range of multi award winning 24v turntables. Designed with a simple fixing solution to fit all previous Rega turntables that do not already use 24v technology.

RB78

RB78
4,000.00
The RB78 is a general purpose mono cartridge designed to play most 78 rpm records.
Output: 6.2 - 6.8mV
Stylus: RB78
Fixing: Standard, two screws
Coils: High Spec parallel wound coils
Colour: Black
Bias 2
4,000.00
Output: 6.8 - 7.2mV
Stylus: elliptical
Fixing: standard, two screws
Coils: High Spec parallel wound coils
Colour: Red
Elys 2
7,490.00
Output: 6.8 - 7.2mV
Stylus: elliptical
Fixing: Rega three point fixing
Coils: High Spec parallel wound coils
Colour: Blue
Exact
12,600.00
Output: 6.8 - 7.2mV
Stylus: Vital. Complex fine line micro-ground from a rectangular diamond billet.
Fixing: Rega three point fixing
Coils: High Spec parallel wound coils
Colour: Yellow

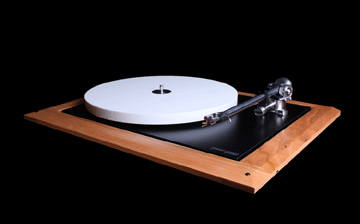

The P9

P9
130,000.00
The P9 is, in our opinion, the ultimate performance turntable available to the music-loving public. We designed the P9 with no financial restrictions whatsoever. The ceramic platter alone costs more to produce than our P5 turntable! With the right cartridge, you will be astonished at just how much information this turntable retrieves from your vinyl LP collection.

The plinth is a complex CNC machined skeletal structure encased in highly ridged phenolic resin laminates. The equivalent to the carbon fibre 'monocoque' chassis of the formula one car - an ultra lightweight, ultra rigid foundation for this high performance turntable. The plinth of the new P9 uses a brand new material to hi-fi for the inner skeletal structure. It is an ultra lightweight fibre composite. This results in the plinth being even lighter than the previous Planar 9 and improves the performance.

The main bearing assembly is engineered to extremely tight tolerances. This results in virtually friction free rumble-less performance which, if lubricated correctly, will last your lifetime!

The platter is quite simply the most exotic material we have used to date in our turntable designs. It is made from pure ceramic; a material that you would otherwise find on missile nose cones or maybe insulation tiles found on Nasa's space shuttle. The reason for using such an exotic and difficult to produce material? It is the hardest material known to man apart from diamond!

The P9 carries a decorative surround of exotic solid woods, which you can cleverly interchange if you so wish to give a different appearance.

New technologies in CNC woodworking machinery have allowed Rega to produce its first technologically complex surround. The new P9 surround is considerably more attractive than its predecessor and externally much larger although through clever machining the new surround is lower in mass than the old which gives a performance improvement.

The external power supply unit is a quart crystal locked system. To ensure accurate speed stability of the platter motor, two quartz crystal control reference oscillators have been utilised. This system produces a high frequency (3 MHz for 33 and 4 MHz for 45) signal, which is then divided down to feed generously rated, high current power fet amps.

The output from these is very pure (< 0.03 THD, this is a lower value than many power amplifiers output). The beauty of this power supply is that a dual phase is supplied to the motor, the phases of which may be varied in relation to each other. This means that the power supply phases are trimmed to eliminate all vibration from the motor. In turn, this means that there is no need for plinth suspension, which would ordinarily be required to eliminate motor resonance.

We have replaced the RB900 with the all new RB1000. This tonearm takes thirty times longer to produce than an RB300. At present there are only two of our most highly trained and experienced technicians that can build this exotic tonearm.

The RB1000 carries more technological changes over previous Rega tonearms than any produced during the last twenty years! Key areas of improvement can be found in the bearing assemblies, wiring and materials used. We have worked to redistribute and reduce mass in areas of the tonearm where mass is critical to performance. The easiest place to see these changes in evidence would be the new polished aluminium arm tube. It has no coatings of any type.The changes we have made over the RB900 have resulted in a tonearm with extremely high structural rigidity, combining ultra low friction movement together with massive stability. These attributes will make any cartridge mounted on this tonearm work harder than they have ever worked before. Do not be surprised if the first time you listen to familiar music, you hear detail that you have never heard before!

2005 - Hi Fi Choice Silver award winner for best Turntable between £1000 - £3000

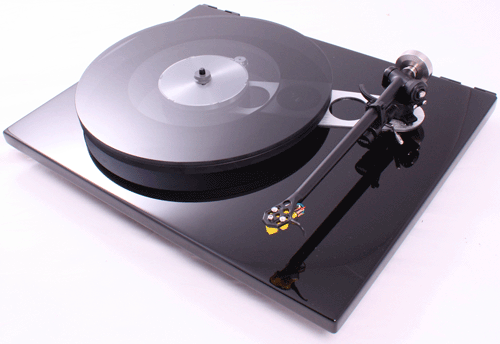

The Rega RP6 Turntable

RP6 without cartridge
45,000.00

RP6 with Exact cartridge
55,000.00
The Rega RP6 Turntable
The RP6 has been designed and engineered to achieve outstanding performance way beyond the expectations of a product at this price point. Excellent build quality, reliability and ease of use combine to make a product which, if used correctly, will offer you a lifetime of musical enjoyment. Omitting unnecessary gimmicks allows us to concentrate the manufacturing costs on the high quality parts necessary to reproduce music accurately. The RP6 is fitted with a hand assembled RB303 tonearm, precision main bearing and a low vibration low noise 24v motor assembly which is individually hand tuned to its circuit to further reduce vibration. The minimalist design of the Rega RP6 and the use of extremely high quality components ensure that your turntable should last for many years.
RB303 Tonearm
Designed using the latest 3D CAD technology the new RB303 is the culmination of more than 30 years of tonearm design experience. Due to advances in technology we have been able to fine tune the iconic RB300 tonearm design. Featuring a brand new tube which has increased rigidity to the bearing housing, arm carrier and headshell coupled with intelligent redistribution of mass, ensure this arm will exhibit fewer points of possible resonance. Extreme stability with almost friction free movement from the high precision bearing assemblies guarantee to gather more information from your vinyl than ever before.

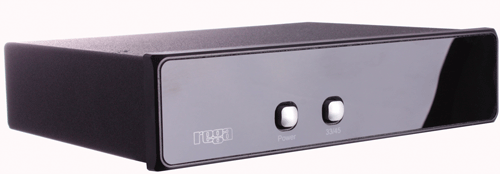

TTPSU power supply (pictured below)

The compact TT-PSU uses a high stability crystal locked low distortion sine wave generator. This, along with an efficient drive amplifier fed from a stabilised DC power supply, generates a 24V AC balanced signal of less than 0.05% distortion, which is completely un-affected by any changes in the mains/line voltage and conditions. This then drives the improved Rega anti-vibration circuit built into the RP6 motor PCB.
Platter adaptor
The aluminium top hub adaptor is manufactured to the highest tolerance and uses a six point mounting system to ensure the platter and vinyl is presented as flat as possible to the stylus.
NEW DB Technology (Double BraceTechnology)
“Mass absorbs energy - lost energy equals lost music”! Rega has pioneered the use of lightweight rigid plinths. Clever use of lightweight particulate core with a highly rigid phenolic resin skin became the foundations of the high level of performance achieved by the now iconic Planar turntable range. The latest generation of Rega turntables takes this design philosophy to the next level. A super lightweight plinth combined with a phenolic resin double brace mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) forms a structurally sound “stressed beam” assembly. This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.
16MM Glass flywheel platter
The RP6 features an innovative two piece platter design constructed from float glass. Manufactured using a complex and labour intensive invisible UV curing bond technique the secondary ring platter is permanently bonded to the underside of the main platter. The extra ring adds mass to the outer circumference which increase the natural flywheel effect of the platter improving speed stability, accuracy and consistency.
24V Low noise motor
The motor is a high specification, 24V twin phase synchronous unit which has the anti vibration circuit hand tuned to each motor and is controlled by Rega's unique and innovative TTPSU power supply. The motor drives the CNC machined pulley and sub platter/hub-bearing assembly via the belt drive.

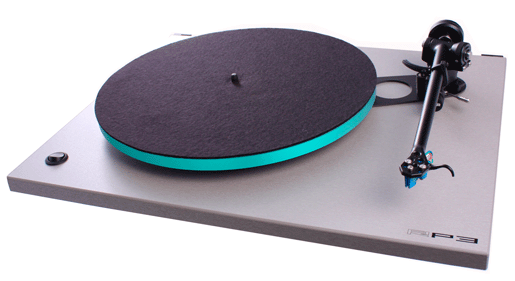

RP3 Turntable Cool grey/ Titanium / White

RP3 Turntable Cool grey/ Titanium / White
25,900.00

RP3 Turntable Cool grey/ Titanium / White with ELYS2
29,900.00
The Rega RP3 turntable.

The RP3 has been designed and engineered to achieve outstanding performance way beyond the expectations of a product at this price point. Excellent build quality, reliability and ease of use combine to make a product which, if used correctly, will offer a lifetime of musical enjoyment. Omitting unnecessary gimmicks allows us to concentrate the manufacturing costs on the high quality parts necessary to reproduce records accurately. The RP3 is fitted with a brand new hand assembled RB303 tonearm, precision main bearing and a low vibration low noise 24v motor assembly which is individually hand tuned to its circuit to further reduce vibration.

DB Technology (Double Brace Technology)

"Mass absorbs energy - lost energy equals lost music"! Rega has pioneered the use of lightweight rigid plinths. Clever use of lightweight particulate core with a highly rigid phenolic resin skin became the foundations of the high level of performance achieved by the now iconic Planar turntable range. The RP3 takes this design philosophy to the next level. A super lightweight plinth combined with a phenolic resin double brace mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) forms a structurally sound "stressed beam" assembly. This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.

RB303 Tonearm - Making the best better

Designed using the latest 3D CAD & CAM technology the new RB303 is the culmination of more than 30 years of tonearm design experience. Due to advances in technology we have been able to fine tune the iconic RB300 tonearm design. Featuring a brand new tube with increased rigidity to the bearing housing, arm carrier and headshell coupled with intelligent redistribution of mass ensure this arm will exhibit fewer points of possible resonance. Extreme stability with almost friction free movement from the high precision bearing assemblies guarantee to gather more information from your vinyl than ever before.

Features:

RB303 tonearm
Double brace technology
Light weight plinth design
24v low noise low vibration hand tuned motor assembly
3 high quality plinth finishes
Optional Elys 2 cartridge factory fitted

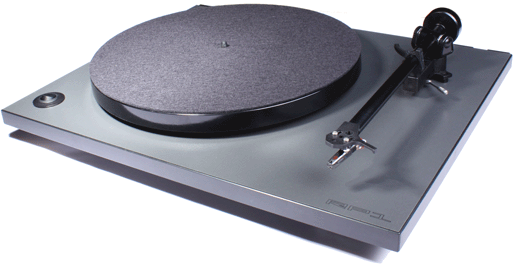

RP1 Turntable Cool grey/ Titanium / White

RP1 Turntable Cool grey/ Titanium / White
14,900.00

RP1 Performance Pack Fitted
19,900.00
The Rega RP1 Turntable

Designed and engineered to achieve outstanding performance way beyond the expectations of a product at this price point.

Excellent build quality, reliability and ease of use combine to make a product which will offer a lifetime of musical enjoyment. Omitting all the usual gimmicks allows us to concentrate the manufacturing costs on the high quality parts necessary to reproduce records accurately.

Using a manual speed change rather than an automatic mechanism, eliminates speed inconsistencies and reduces wear of the drive belt. The money we save is spent across the design including a new hand assembled RB101 tonearm, precision main bearing, phenolic resin platter and a high quality low vibration motor which would normally be used on a turntable costing two or three times the amount.

The minimalist design of the Rega RP1 and the use of extremely high quality components ensure that this turntable will last for many years. The RP1 is the first in a new generation of Rega turntables offering far greater performance than their predecessors.

We are confident the performance of this amazing new product will impress you. Rest assured the only thing entry level about the RP1 is the price !


The all new completely British-made RP1 features:

## Brand new Rega RB101 tonearm.
##Precision main bearing and sub-platter assembly.
## High quailty low vibration motor.
##All new Phenolic resin flywheel effect platter for excellent speed stability.
##Ortofon OM5e moving magnet cartridge.
##Rega sound quality at an unrivalled price.

Model shown in the picture above is the 'Cool Grey' version
